CAN

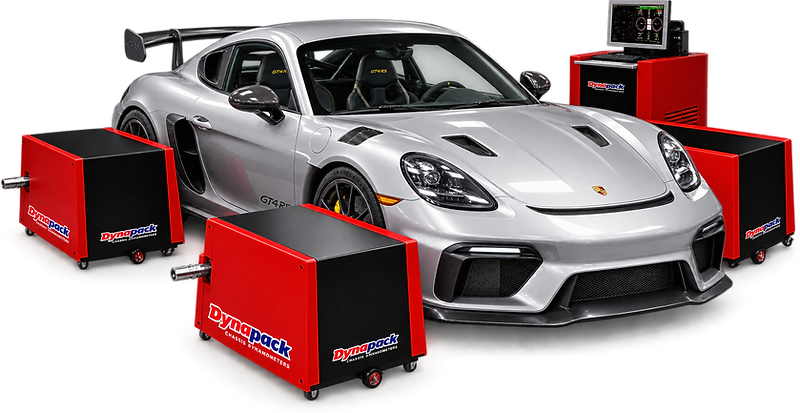

CAN is fully integrated into our PSDAQ smart control software. It is simple to use and easy to configure input/output channels in the main CAN screen. The Dynapack can accept up to 4 CAN devices (#1-#4) with each device having separate settings so one device can for example connect at 500k-bits/s while the other device connects at 125k-bits/s.
Individual CAN outputs can be directly enabled or disabled from this screen
Features of the CAN interface:
- USB powered
- Galvanic isolation to over 500V with opto isolated USB to CAN communication
- Approximate Dimensions: 105 x 60 x 35mm, 230g
- Supports 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B Active)
- Supports all standard bit-rates. Custom bit-rates in the range of 10K to 1M supported
- Standard (CiA® 303-1) 9-pin D-Sub CAN interface connection
- Receive messages on the CAN bus, log and display real-time in PS DAQPLUS Software
- Transmit messages from the Dyno software to other devices on CAN, including Dyno’s measured torque
Minimum PC Specs
- CPU
- Intel i3 or higher
- CPU Speed
- 3.0GHz or higher
- RAM
- 4GB minimum
- HD Space
- 50GB Free
- USB Ports
- 1 x USB 2.0 onwards
- Software
- Windows7 upwards, 64 or 32-bit
Occasional Internet Connectivity required, i.e. WiFi or Network socket for loading of software
